Marine bollard
Your current location:Home > PRODUCTS > Marine Mooring Equipment > Marine bollard

Type B Curved Bollard

Type B Curved Bollard (3).jpg

Bollard Capacity : 5 to 150 Tonnes

Material : Cast Steel , Cast Iron

Surface : black bitumen paint

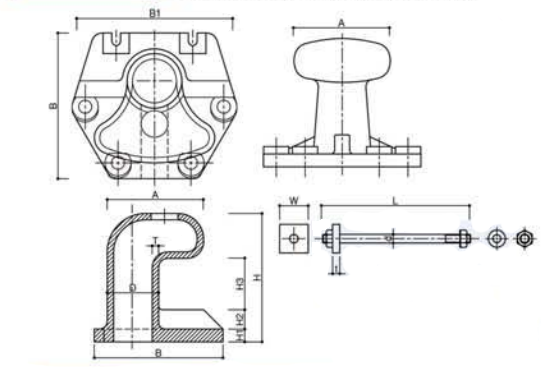

Type B Curved Bollard (1).png

MODELNO	Bolts Qty	SIZE(mm)									Bolt		Plant
MODELNO	Bolts Qty	D	A	B	B1	H	H1	H2	H3	T	d	L	W	t
5T	4	150	300	360	－	380	30	60	170	20	20	450	80	16
10T	4	200	400	480	－	480	40	70	210	20	27	600	108	22
15T	4	250	500	600	－	580	50	80	250	20	33	700	132	25
25T	4	300	600	700	－	690	65	95	290	21	42	850	168	35
35T	6	300	600	720	810	690	65	95	290	25	42	850	168	35
50T	6	350	700	840	945	780	70	100	330	29	48	1000	192	40
70T	6	400	800	1000	1130	900	90	120	370	33	56	1150	225	45
100T	6	450	900	1200	1365	990	95	125	410	39	64	1360	256	55
150T	6	550	1100	1600	1765	1260	120	145	490	49	80	1450	300	65

Previous：JIS Type Single – Bite Bollard

Next：Type A Curved Bollard
